Description

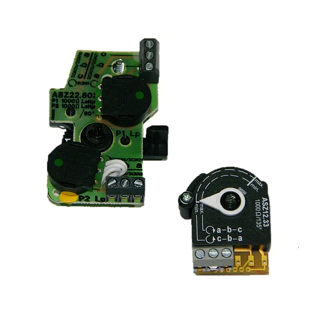

Siemens ASZ12.703 single & double potentiometers for integrating into SQM or SQN actuators to indicate the actuator’s shaft position

ASZ12.30 – For SQM5 and SQN7, Conductive Plastic, 90°
Angular Rotation, 1000 Ohm Resistance, Single Potentiometer
ASZ12.33 – For SQM5 and SQN7, Conductive Plastic, 135°
Angular Rotation, 1000 Ohm Resistance, Single Potentiometer
ASZ12.803 – For SQM5, Conductive Plastic, 90°
Angular Rotation,1000 Ohm Resistance, Single Potentiometer
ASZ12.833 – For SQM5, Conductive Plastic 135° Angular Rotation,
1000 Ohm Resistance, Single Potentiometer
ASZ16.703 – For SQM5, Wire, 90° Angular Rotation,
135 Ohm Resistance, Single Potentiometer
ASZ16.733 – For SQM5, Wire, 135° Angular Rotation,
135 Ohm Resistance, Single Potentiometer
ASZ22.30 – For SQM5 and SQN7, Conductive Plastic, 90° Angular Rotation,
1000 / 1000 Ohm Resistance, Double Potentiometer
ASZ22.33 -For SQM5 and SQN7, Conductive Plastic, 135° Angular Rotation,
1000 / 1000 Ohm Resistance, Double Potentiometer
ASZ22.803 – For SQM5,Conductive Plastic, 90° Angular Rotation,
1000 / 1000 Ohm Resistance, Double Potentiometer
ASZ22.833 – For SQM5, Conductive Plastic, 135° Angular Rotation,
1000 / 1000 Ohm Resistance, Double Potentiometer
ASZ66.733 – For SQM5, Wire, 135° Angular Rotation,
135 / 135 Ohm Resistance, Double Potentiometer
