Description

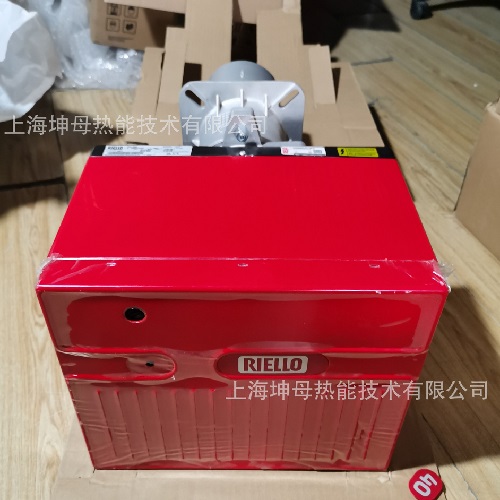

RIELLO 40 GS20 one-stage commercial gas boiler burner
- Monoblock, gas burners, completely automatic, with one stage settings fitted with:
– Fan with forward curve blades
– Cover lined with sound-proofing material
– Air damper, completely closed in stand by, with adjustment inside the cover
– Single phase electric motor 230 V, 50 Hz - Combustion head fitted with:
– stainless steel head cone, resistant to high temperatures
– ignition electrodes – ionisation probe
– gas distributor – flame stability disk - Adjustable air pressure switch, with graduated selector, to guarantee burner lock out in the case of insufficient combustible air
- Microprocessor-based burner safety control box MG 557 (with diagnostic, remote reset, continuous purge integrated, recycle, post-purge)
- IP X0D (IP 40) electric protection level.
Standard equipment:
- Flange insulation screen
- Screws and nuts for fixing the flange to the boiler
- 7-pole socket
- Hinge
- Reduction nipple Rp 1/2” – Rp 3/8” (for R40 GS3 only)
- Grommet – Instruction handbook for installation, use and maintenance
- Spare parts catalogue.
RIELLO 40 GS SERIES gas burner for commercial boiler
Overview
The Riello 40 GS series of one stage gas burners, is a complete range of products developed to respond to any request for home heating.
The Riello 40 GS series is available in four different models, with an output ranging from 11 to 220 kW, divided in four different structures. All the models use the same components designed by Riello.
The high quality level guarantees safe working. The Riello 40 GS burners are fitted with a microprocessor based control box with diagnostic functions. In developing these burners, special attention was paid to reducing noise, to the ease of installation and adjustment, to obtaining the smallest size possible to fit into any sort of boiler available on the market.
All the models are approved by the EN 676 European Standard and conform to European Directives for EMC, Low Voltage, Machinery and Boiler Efficiency. All the Riello 40 GS burners are tested before leaving the factory.
