Description

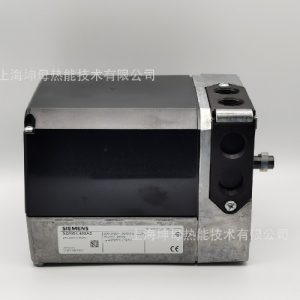

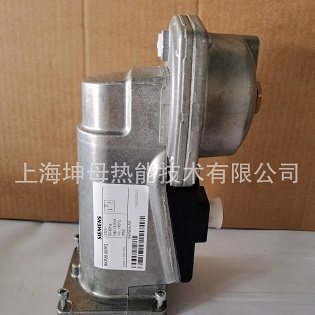

Siemens SKP25.001F2 boiler burner gas valve actuator
Siemens SKP25… pressure regulation electro-hydraulic actuators are used in combination with VG… valves. The gas valve body is connected in series to provide safe shut-off and gas pressure regulation for industrial and commercial burners.
The SKP25… can also be applied as a 1:1 air/gas ratio regulator or zero governor. Since a single valve performs two or more functions, fewer gas train components and fittings are required. This significantly reduces both the size and weight of the gas train.In addition, smaller diameter gas valves can be used.
Compact SKP25… The actuator opens slowly and turns off as soon as the power is interrupted. The modular design allows the SKP25… to be matched with all VG… series gas bodies available in sizes ranging from 1/2″ to 6″.
Actuators are easy mounted on the square flange of any VG… valve with four pre-installed screws. A visible position indicator on the front of the actuator displays the entire stroke of the valve. The indicator light indicates when the actuator is energized.
