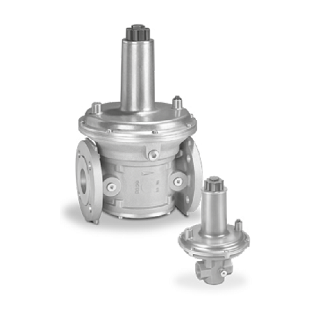

Kromschroder VGBF 50F05-3VZ, gas pressure regulator

Description

Kromschroeder gas pressure regulator, spring-loaded, with inlet pressure compensation diaphragm & zero shut-off, to maintain a constant set pressure

The spring-loaded gas pressure regulator VGBF… with inlet pressure compensation diaphragm and zero shut-off serves to maintain the set outlet pressure constant despite changing gas flow rates and inlet pressures in gas pipelines.

Thanks to an additional safety diaphragm, no breather line is required, for use in gas inlet sections in all sectors of the iron, steel, glass and ceramics industries as well as in commercial heat generation, such as the packaging, paper and foodstuffs industries.

•  DN 50 Flange to ISO 7005 pu max. 0.5 bar
• Screw plug at the inlet and outlet
• Viton seal and diaphragms, for aggressive media and air
• Special outlet pressure range

Feature

• Pressure regulators for gaseous media for installation in all types of gas appliances
• Design with inlet pressure compensation diaphragm ensures high control accuracy
• High flow rate due to optimal dimensioning
• Internal impulse on VGBF…05
• Feedforwarding the furnace chamber pressure is possible
• No breather line required
